compass

compass(; kwargs...)

Draw a map directional rose or magnetic compass on the map.

Description

Convenience function that wraps basemap to draw directional (-Td) or magnetic (-Tm) compass roses. The mode is auto-selected: if dec (magnetic declination) is provided, a magnetic compass is drawn; otherwise a directional rose is drawn.

Can be called standalone (creates its own plot) or as an overlay (compass!) on an existing plot. When called standalone without region/proj, a default canvas sized to fit the rose is created automatically using paper coordinates.

Directional Rose Options

  • anchor : – anchor=(x,y) | anchor=refpoint
    Reference point on the map for the rose. When called standalone without region/proj, this is interpreted as paper coordinates (cm). In overlay mode or with explicit region/proj, the coordinate system is determined by the map, inside, outside, norm, or paper modifiers.

  • width : – width=val
    Width of the rose in plot coordinates (cm). This also controls the auto-generated canvas size when no region/proj is given.

  • fancy : – fancy=true | fancy=level
    Draw a “fancy” rose. Level 1 (or true) draws the two principal E-W, N-S orientations. Level 2 adds the two intermediate NW-SE and NE-SW orientations. Level 3 adds the eight minor orientations.

  • labels or label : – labels=“W,E,S,N”
    Comma-separated labels for the cardinal points. Skip a label by leaving it blank (e.g., ",,,N"). Use labels=true to get the default W,E,S,N labels.

  • justify : – justify=code
    2-char justification code for the anchor point (e.g., :CM for center-middle). See text.

  • offset : – offset=(dx,dy)
    Offset from the anchor point.

  • map, inside, outside, norm, paper :
    Coordinate system for the anchor point. Use map=true for map coordinates, inside=code or outside=code for justification-based placement, norm=true for normalized (0-1) coordinates, or paper=true for plot coordinates.

Magnetic Compass Options

All directional options above, plus:

  • dec : – dec=val
    Magnetic declination in degrees. The presence of this option switches the function to magnetic compass mode (-Tm).

  • annot : – annot=(a1,a2,a3,a4,a5,a6)
    Six annotation/tick intervals: the first three for geographic directions (annotation, tick, minor tick) and the last three for magnetic directions. Default is 30/5/1 for both.

  • rose_primary : – rose_primary=pen | rose_primary=(width, color)
    Pen for the outer (primary) circle of the compass.

  • rose_secondary : – rose_secondary=pen | rose_secondary=(width, color)
    Pen for the inner (secondary) circle of the compass.

Pass-through Options

All other keyword arguments are passed to basemap. Common ones include:

  • region, proj, frame, par/conf, show, savefig, fmt, Vd, xshift, yshift, box (see basemap).

Note: when compass is called without an explicit frame, it defaults to frame=:none so that only the compass rose is drawn (no axes).

Examples

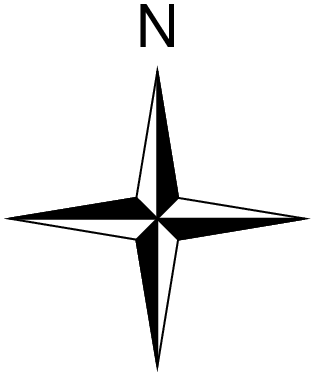

Standalone directional rose

A simple directional rose — no region or proj needed. The canvas is auto-sized to fit the rose.

using GMT

compass(width=2.5, fancy=true, labels=",,,N", show=true)
Precompiling packages...


  55708.7 ms  ✓ GMT

  1 dependency successfully precompiled in 57 seconds. 80 already precompiled.

Fancy directional rose (level 3) with all labels

using GMT

compass(width=4, fancy=3, labels=true, show=true)

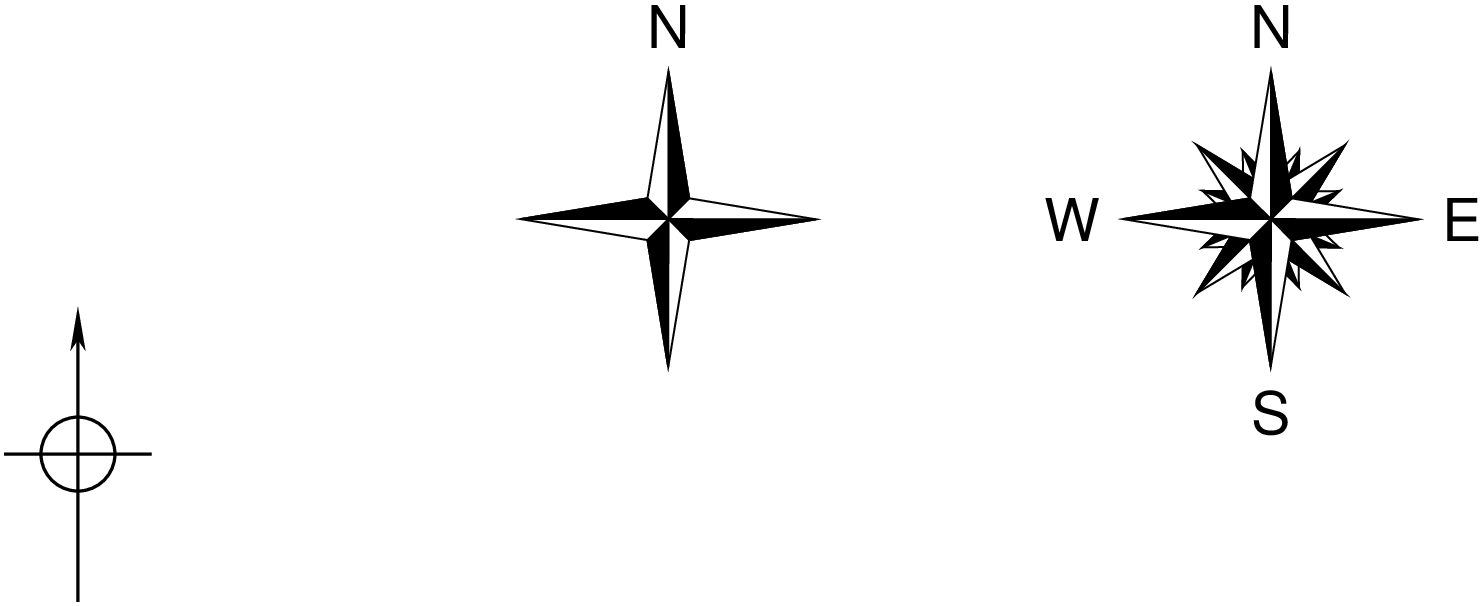

Three directional roses side by side

Plain, fancy level 1, and fancy level 3, plotted using overlay mode with shifts.

using GMT

basemap(region=(-5,5,-5,5), proj=:merc, figscale=0.4, frame=:none,
        rose=(map=true, anchor=(0,0), justify=:CM, width=2.5))
compass!(width=2.5, anchor=(0,0), justify=:CM, fancy=true, labels=",,,N", xshift=3)
compass!(width=2.5, anchor=(0,0), justify=:CM, fancy=3, labels=true,
         region=(-7,7,-5,5), xshift=3.5, show=true)

Directional rose on a map

using GMT

coast(region=(-10,10,-10,10), proj=:Mercator, frame=:auto, land=:lightgray, water=:lightblue)
compass!(width=2.5, inside=:TR, fancy=true, labels=",,,N", offset=0.5, show=true)

Magnetic compass (standalone)

A magnetic compass with declination of -14.5 degrees and custom annotation intervals.

using GMT

compass(width=6, dec=-14.5, annot=(45,10,5,30,10,2),
        rose_primary=(0.25,:blue), rose_secondary=0.5, labels="",
        par=(FONT_ANNOT_PRIMARY=9, FONT_LABEL=14, MAP_VECTOR_SHAPE=0.5,
             MAP_TICK_PEN_SECONDARY="thinner,red", MAP_TICK_PEN_PRIMARY="thinner,blue"),
        show=true)

Magnetic compass on a map

using GMT

coast(region=(-10,5,35,45), proj=:Mercator, frame=:auto, land=:bisque, water=:lightblue,
      borders=(type=1, pen=0.5), shore=0.5)
compass!(width=3, inside=:BL, dec=-2.5, annot=(45,10,5,30,10,2),
         rose_primary=(0.25,:blue), rose_secondary=0.3, labels="O,E,S,N",
         offset=0.5, show=true)

See Also

basemap, coast
